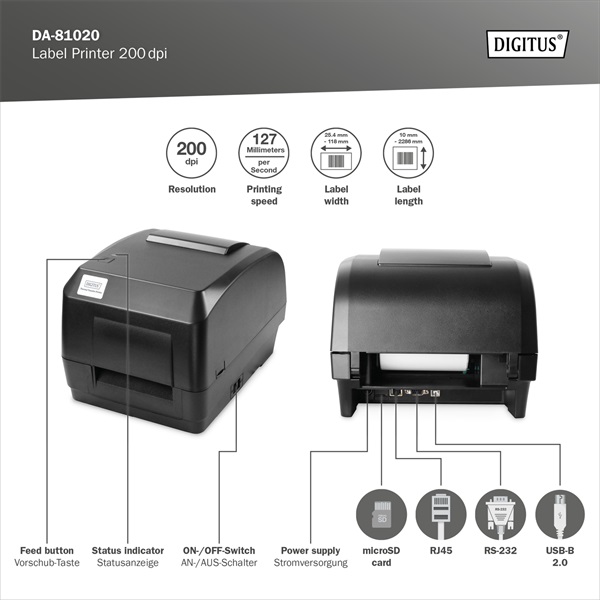

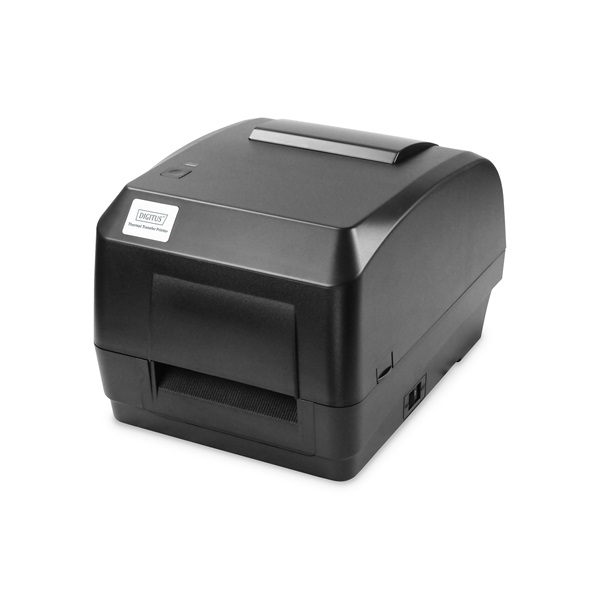

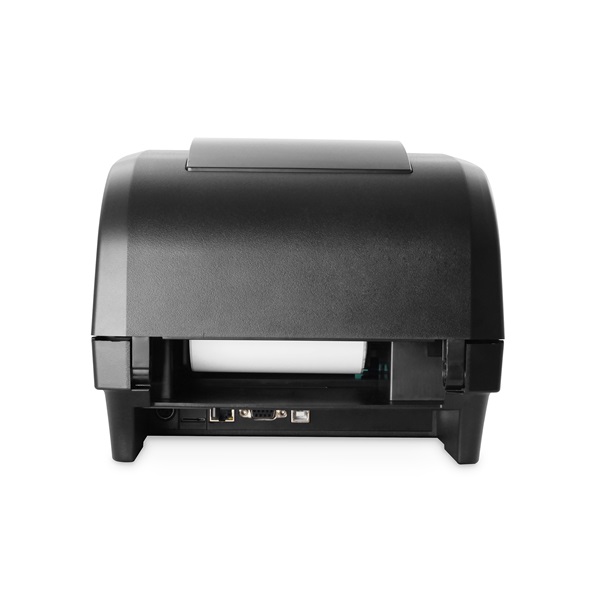

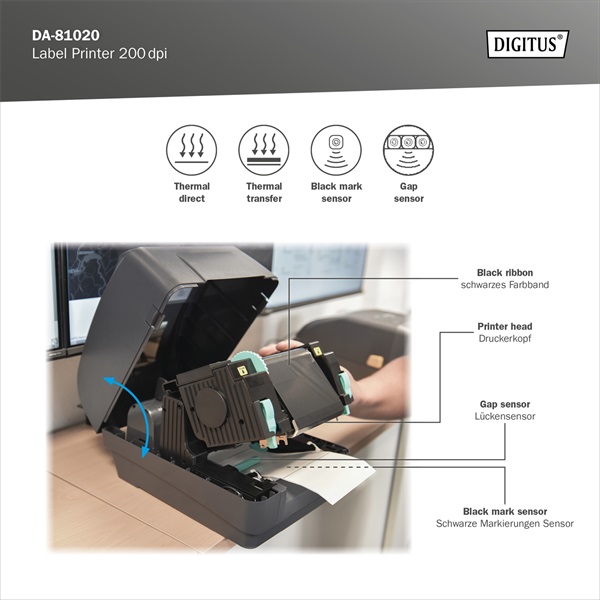

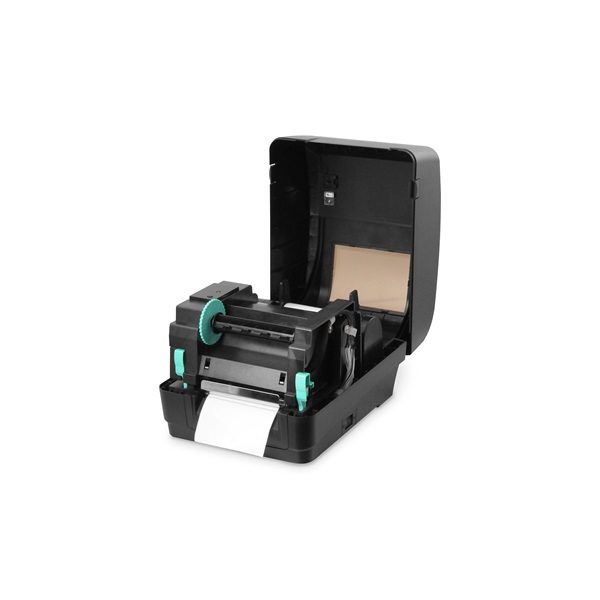

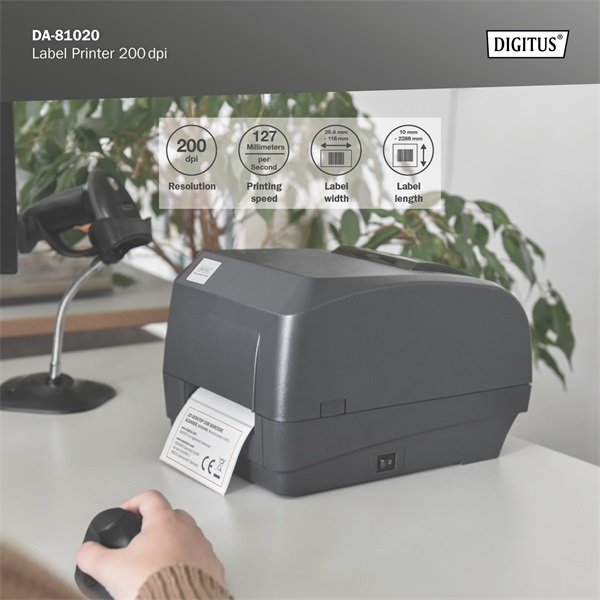

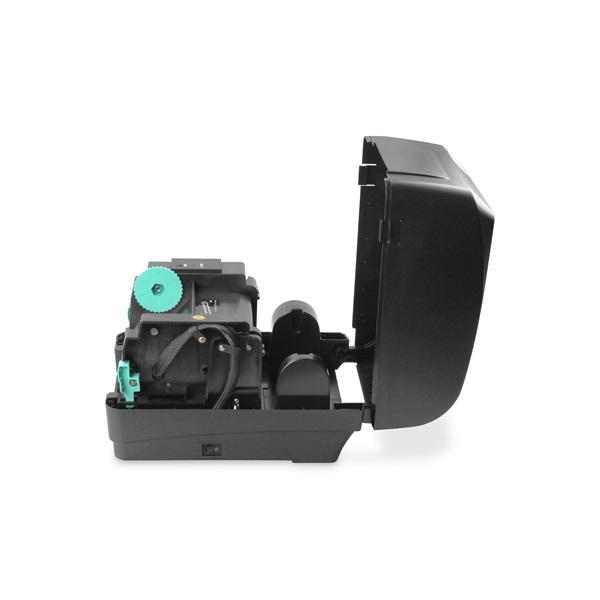

Bar Code Label Printer, 200dpi Thermal Direct/Transfer, USB, LAN, Serial
TECHNICAL DETAILS
Resolution 203 DPI
Printing method thermal transfer / direct thermal
Max. Print speed: 127 mm (5") / s Max.
Max. Print width/length: 108mm (4.25") / 2286mm (90")
Print media: continuous, gap, black mark, fanfold and perforation
Media width/thickness: 25.4-118mm (1.0-4.6") / 0.06-0.254mm (2.36-10mil)
Media core diameter 25.4-76.2mm (1-3")
Label length 10-2286mm (0.39-90")
Label roll capacity 127mm (5") (outer diameter)
Ribbon capacity Max: 300m
Ribbon width: 110mm
Ribbon core inner diameter: 25.4mm (1")
Performance Features: Processor 32-bit CPU
Memory 4MB flash memory, 8MB SDRAM, SD card reader for flash memory expansion, up to 4GB
Interface: USB2.0/Serial/Ethernet
Internal fonts: 8 alphanumeric bitmap fonts, Windows fonts can be downloaded from software.
1D barcode: Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
2D barcode PDF-417, Maxicode, DataMatrix, QR code, Aztec
Rotation: 0°, 90°, 180°, 270°
Emulation: TSPL, EPL, ZPL, DPL
Dimensions 302,5mm (D) x 234mm (W) x 194,8mm (H)
Weight 2.6kg
PACKAGE CONTENT
1x Label Printer
1x Power supply
1x USB cable
1x Test label paper
2x Label role receptacle
1x Cardboard sleeve
1x Ribbon
1x Ribbon recycling roll
2x Ribbon screw
1x QIG
