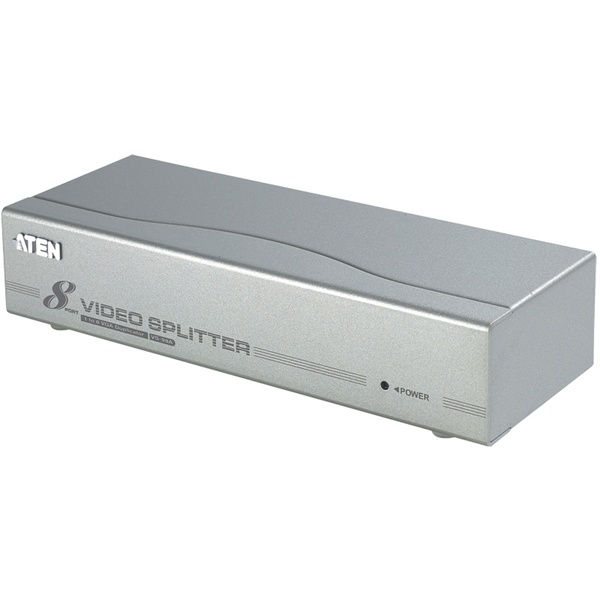

8-Portos Video Splitter 350 MHz
The VS98A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to eight outputs, but also boosts the video signal over a distance of up to 65 meters. Cascadable to support up to 512 displays, and offering bandwidth up to 300 MHz, the VS98A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Features
- One video input to 8 video outputs
- Cascadable to 3 levels - provides up to 512 video signals
- Supports 300 MHz bandwidth
- Long-distance transmission - up to 65 m
- Superior video quality - 1920 x 1440@60Hz
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
- All metal casing
Package Content
- 1x 8-Port Video Splitter
- 1x Power Adapter
- 1x User Guide
Specification
Display Connections - 8/512*
Connectors
Video In - 1 x HDB-15 Male (Blue)
Video Out - 8 x HDB-15 Female (Blue)
Power - 1 x DC Jack
LEDs
Power - 1 (Orange)
Video -
Resolution - 1920 x 1440 @ 60Hz
Bandwidth - 300 MHz
Signal Range - 65 m
Power Consumption - DC9V, 3.94W
Environment
Operating Temp. - 0-50°C
Storage Temp. - -20-60°C
Humidity - 0-80% RH, Non-condensing
Physical Properties
Housing - Metal
Weight - 0.69 kg
Dimensions
(L x W x H) 20.00 x 7.50 x 4.50 cm
